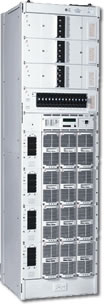

163 Power System
Single-Bay 1,200 Amps @ -48VDC
Multi-Bay 9,600 Amps @ -48VDC
- 1,200 Amps per bay – Up to 12, 100 Amp switchmode rectifiers can be installed
- 9,600 Amp power system – Up to eight bays can be connected in parallel
- Single and 3 phase configurations
- Self-contained power, distribution, and monitoring – Operates as an all-inclusive power solution
- Customized distribution – Each bay can be equipped with up to four panels. Nine different fuse and circuit breaker panel options are available
- Simple controller – Easy to navigate, pushbutton controller has two lines of text to allow plant monitoring and control
- Remote monitoring – The plant is accessible via the Internet, LAN, or WAN connection when equipped with an optional Gateway® card and GUI screens
- SNMP compliant
- Small footprint – 23.62" by 23.62" (600mm by 600mm)
PRODUCT DESCRIPTION
The 163 is a self-contained, expandable, power and distribution solution. To meet the specific needs of a site, customized distribution is available by combining up to four of the nine available circuit breaker and fuse panels.
The controller on the front of the 163 allows the user to easily navigate plant menus to view status information, change setpoints, or monitor alarms. The system passes active status information via a CAN bus, ensuring that real-time information is available. Each system can be connected to a LAN, WAN, or the Internet, allowing staff to view plant status or make adjustments remotely. In addition, up to 24 alarms can be extended to office monitoring equipment via relay contacts.
Up to eight 163 bays can be connected in parallel, providing up to 9,600 Amps @ -48VDC. An optional battery-monitoring panel (BAP) is available for enhanced battery monitoring.
